Uindstøbte Transformere for Printmontage 50/60Hz - 0,4-12VA

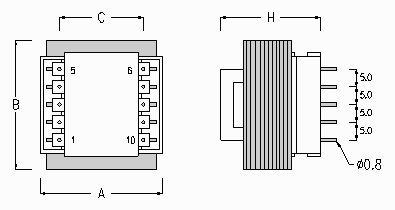

| TYPE | EFFEKT (VA) | A (mm) | B (mm) | C (mm) | H(mm) | Term. |
| 160 | 0,4 | 25,5 | 30,5 | 20,0 | 14,0 | 10 |
| 161 | 0,8 | 25,5 | 30,5 | 20,0 | 20,0 | 10 |
| 162 | 1,1 | 25,5 | 30,5 | 20,0 | 22,0 | 10 |
| 163 | 1,5 | 25,5 | 30,5 | 20,0 | 25,0 | 10 |
| 164 | 1,8 | 25,5 | 30,5 | 20,0 | 28,0 | 10 |
| 170 | 1,0 | 27,5 | 33,5 | 20,0 | 25,0 | 10 |
| 171 | 1,5 | 27,5 | 33,5 | 20,0 | 30,0 | 10 |
| 172 | 2,0 | 27,5 | 33,5 | 20.0 | 33,0 | 10 |
| 180 | 2,5 | 34,5 | 40,5 | 25,0 | 29,0 | 10/12 |
| 181 | 3,5 | 34,5 | 40,5 | 27,5 | 31,0 | 10/12 |
| 182 | 5,0 | 34,5 | 40,5 | 27,5 | 36,0 | 10/12 |
| 190 | 3,5 | 34,5 | 40,5 | 25,0 | 30,0 | 12 |
| 200 | 6,0 | 40,5 | 48,5 | 27,5 | 35,0 | 12 |
| 201 | 8,0 | 40,5 | 48,5 | 27,5 | 39,0 | 12 |
| 202 | 10,0 | 40,5 | 48,5 | 27,5 | 43,0 | 12 |

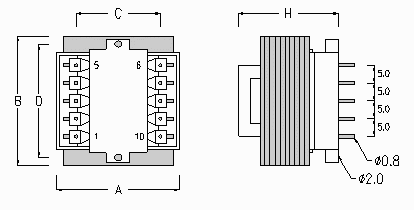

| TYPE | EFFEKT (VA) | A (mm) | B (mm) | C (mm) | D (mm) | Term. |
| 195 | 8,0 | 45,0 | 54,0 | 30,0 x 32,5 | 41,0 | 14 |
| 196 | 10,0 | 45,0 | 54,0 | 30,0 x 32,5 | 41,0 | 14 |
| 197 | 12,0 | 45,0 | 54,0 | 30,0 x 32,5 | 41,0 | 14 |
Varianter fremstilles efter ønske
